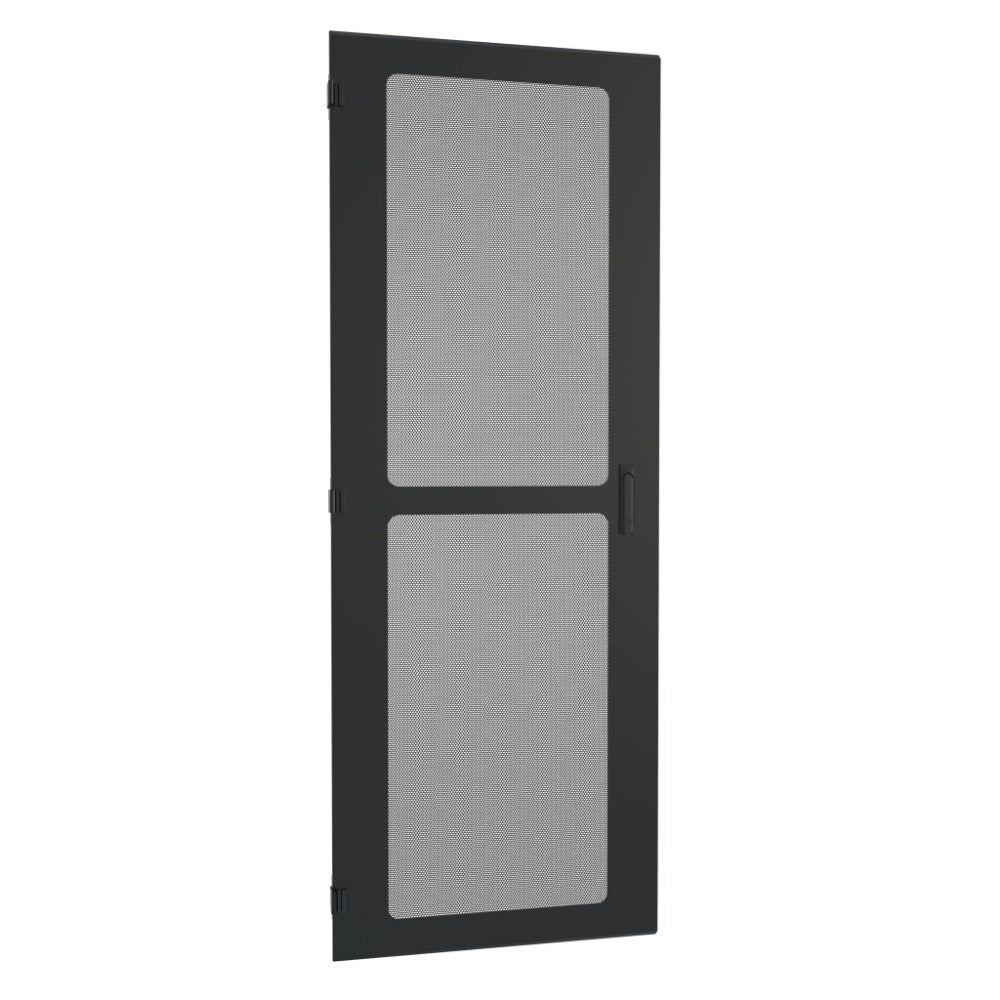

Hammond HWF Series Vented Door for 42U Black

Swing-Out Wall Mount and Floor Rack Cabinet HWF Series

UL2416 rated for up to 700 lbs (317 kg). Static Load tested to 2,800 lbs (1,270 kg).

Spec Sheet

Features

• Available in three (3) heights
• HWF mounts to the wall and sits on the floor supported by levelling feet. The swing-out section is supported by casters.
• Optional doors install in minutes and are available in a vented, tinted window and solid. Order part RHHK1 for right-hand hinge kit.
• The top of the rear section includes a "Bonus" 3U space for optional rack mount fans or accessory mounting.
• The main body can be installed to swing from left-to-right or right-to-left. Includes locking twist-latches.
• Includes one (1) pair of adjustable depth threaded 10-32 EIA compliant mounting rack rails.
  • Thirty (30) inch wide mounting rails include "Bonus" 1U space for optional rack accessories, such as cable management or power bars.
  • 10-32 tapped rails are easy to remove on-site and replace with square hole rails (sold separately) if needed.
• Includes starter pack of SCREW1032-50 screws and CLPKIT1032-25 clip nuts and screws.

Specifications

• Heavy-duty rear and base are constructed in 14-gauge welded mild steel.
• Optional locking doors are constructed in 16-gauge mild steel.
• Swing-out cabinet constructed in 16-gauge welded steel and features a spring-hinge pin for easy installation and removal.
• 2.50” and 2.00” conduit knockouts are located on the side.
• 4.00", 2.00” conduit knockouts and BNC 0.625” knockouts are located on the top.
• Numerous cable management mounting points are included.
• Heavy-duty keyhole for wall mounting and levelling feet.
• Large openings in the rear for cable access designed for mounting over electrical receptacles.
• Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit sold separately.
• UL Listed 2416 load rated for up to 700 lbs (317 kg). Static Load tested to 2,800 lbs (1,270 kg).
• Finished in textured RAL9005 black or RAL9003 white powder paint.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements, when the door is installed.
• TAA compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
